Vacuum single-cone dryers contribute to food safety

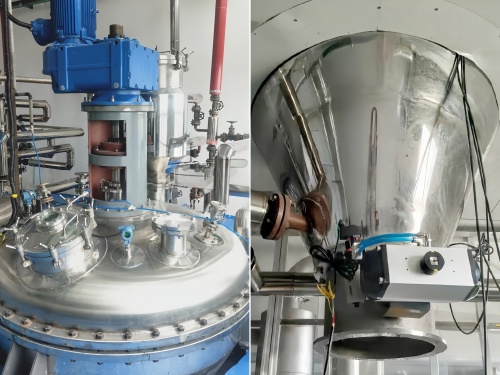

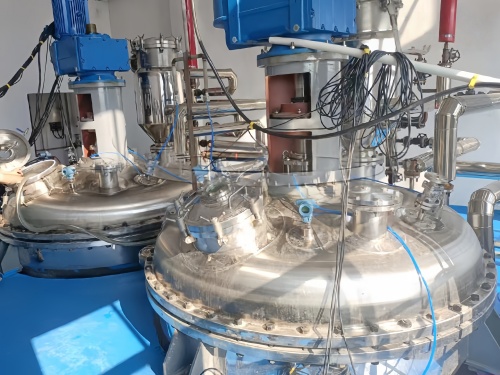

 Recently, our company's engineers and installation and commissioning personnel delivered the new single-cone vacuum dryer independently developed and produced by Shuangrui Machinery to the user (Patent numbers: ZL 2020 2 3230599.8, 2021 1 1275944.6), and successfully completed the installation, commissioning and acceptance work. Now, two production lines have been smoothly put into operation.

This company produces high-quality lactic acid

Established in 2000 by a certain chemical research institute in Japan, this wholly foreign-owned enterprise is dedicated to the exploration and innovation of the lactic acid industry. Adhering to the concept of harmonious development between humans and nature, it adopts the latest biotechnology and advanced refining technology, uses starch as raw material, and strictly follows ISO international standards for production and quality management. Produce high-quality pure natural lactic acid and its salt and ester series products.

Calcium lactate is an important drug for children's health care and the prevention and treatment of infertility. The general production method involves cooling and crystallizing a 65% calcium lactate solution, followed by double-cone vacuum drying, and then crushing and packaging it. The main drawback of this method is that the processing flow is long, the operation is complicated, and the bacterial content of the finished product often exceeds the prescribed index. Double-cone vacuum drying not only involves high labor intensity and low thermal efficiency, but also causes local overheating of the material, resulting in the loss of crystalline water in the finished product and making it difficult to meet the process requirements for calcium lactate pentahydrate. This method is not only inefficient, time-consuming and labor-intensive, but also has a low yield. The product has uneven particle size distribution, a yellowish color and an unpleasant odor.

The working principle of calcium lactate vacuum single cone dryer

Calcium lactate single cone dryer is a highly efficient, multi-functional, fully enclosed vertical vacuum drying equipment integrating vacuum distillation, crushing, powder mixing and drying. Its drying efficiency is 3 to 5 times that of double cone rotary vacuum dryers and vacuum ovens of the same specification. It is mainly used for powder drying in the pharmaceutical, chemical, pesticide, food and other industries, and can achieve continuous operation throughout the process in a closed manner.

The fully automatic single cone dryer is driven by an explosion-proof motor through a parallel helical gear reducer to rotate the single helical ribbon agitator, causing the material to rotate along the conical cylinder and be lifted from bottom to top. After reaching the highest point, the material automatically flows to the center of the vortex and returns to the bottom of the conical cylinder due to the effect of gravity and inertia. The entire process forces the material to be heated inside the conical cylinder, with relative convection and mixing. Heat diffuses among the materials, causing them to move irregularly back and forth. This enables high-frequency heat exchange between the materials and the single-screw ribbon and the surface of the cylinder wall, achieving the effect of heating and drying in a short period of time.

Analysis of the Advantages of Calcium Lactate Vacuum Single Cone Dryer

The new generation of internal heating helical ribbon single cone vacuum dryer has been used in the production of multiple products in industries such as pharmaceutical intermediates, pesticides, fine chemicals, battery materials, and hard alloys, meeting the design index requirements and also confirming the advanced technology of the single cone dryer.

(1) The multi-layer design integrates the online operation of the centrifuge. The single-cone dryer can be conveniently connected to the discharge port of the bag-flipping centrifuge to achieve solid-liquid separation and the drying and mixing of the final product.

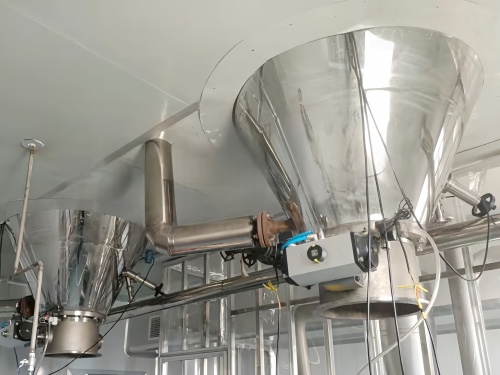

(2) The spherical cut-off vacuum discharge valve at the very bottom enables the vacuum single-cone dryer to achieve automatic discharge, ensuring full sealing during the drying and mixing process.

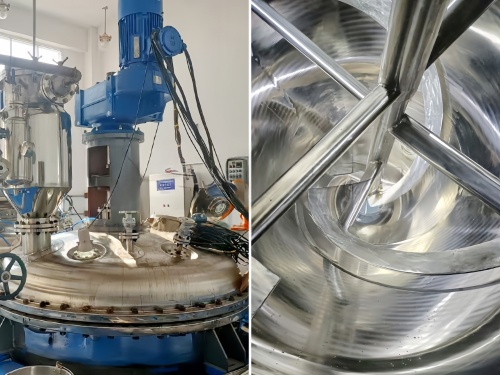

(3) The new type of internal heating helical ribbon agitator not only ensures uniform mixing of materials within the container but also prevents the possibility of material caking during the drying process, thereby enhancing the drying efficiency.

(4) Top drive avoids the possibility of shaft seal and product contamination, ensuring that particles from the external environment do not enter the conical drying mixer.

(5) Without opening the process material bin, the CIP and SIP functions of the equipment can be directly utilized to conveniently carry out necessary cleaning of the equipment.

(6) The mechanical structure is simple and effective, easy for operators to understand. The simple button control makes the operation process very convenient.

The vacuum single cone dryer of Wuxi Sunray is manufactured in accordance with the current international standards for food-grade and hygiene design, just as the adaptability of our system to customers and products as well as the comprehensive after-sales service are self-evident. We have always spared no effort in pursuing high-quality products and services, looking forward to providing our customers with efficient, environmentally friendly and energy-saving drying equipment, and striving to create greater benefits for equipment users.
